Millimeter wave radar sensor
  • Name: New parking sensor with voice alarm, 3.5 inch lcd parking assist system with 4,6,8 sensors optional
  • Product Code: ST-H8524
  • Incoterm: EXW
  • Availability: No stock
Share to:

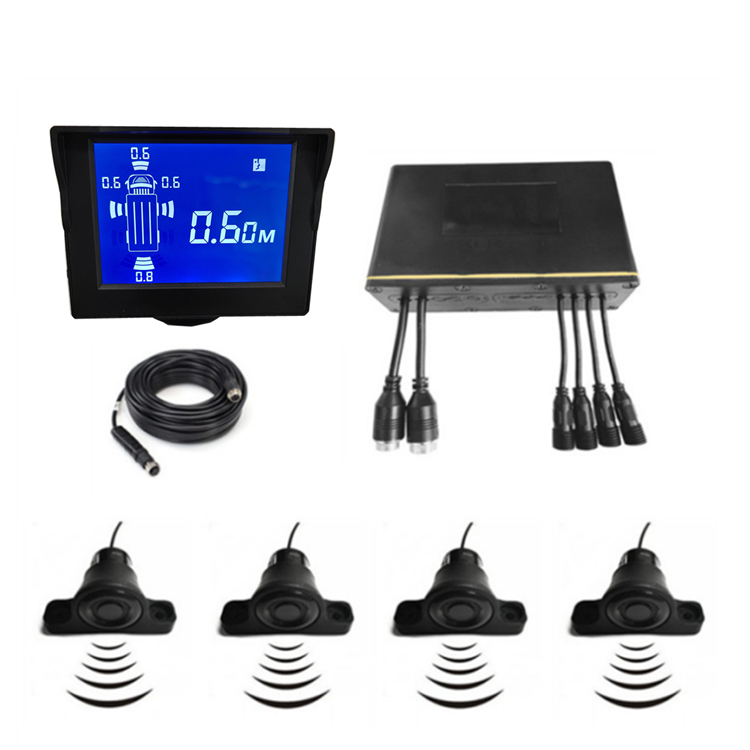

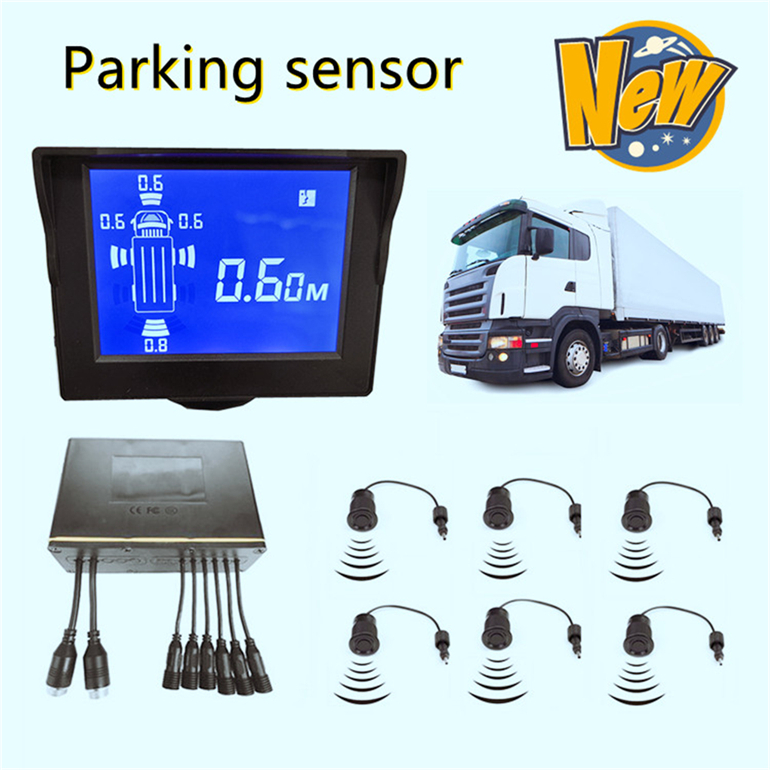

New Parking Sensor System with 3.5 inch LCD screen voive alarm, parking assist system with 4,6,8 sensors optional

Specifications:


  • 3.5-inch monitor car parking sensor system with 3-5 meters long range buzzer alarm

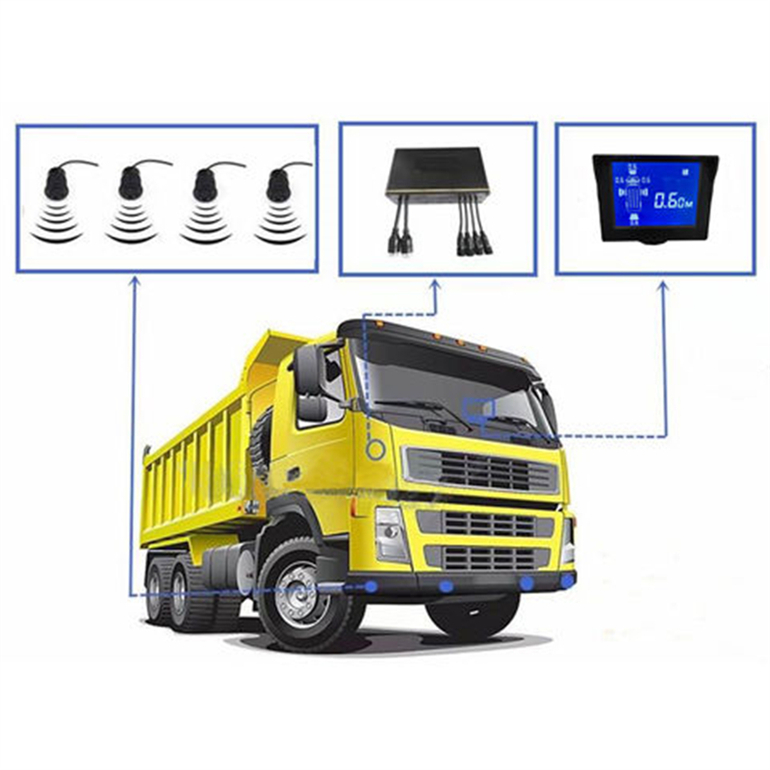

  • Van 4 probe reversing radar system, applicable to all the large vehicles
  • When vehicle starts to reverse, system start working
  • Sensor detection range: 0m - 3.0m (special require: 5.0 meter optional)
  • Speech at distance range: 0.3 meters to 3.0 meters
  • Connector to monitor, host, probe cable length: 15meters, 3meters (customized)
  • Cable connection installation, prevent radio interference
  • Lightning protection anti-interference boxes
  • Bracket screws or punch probe (waterproof for thread form 4 probe)
  • 4 pins screw on extension cable, 15 meters, (other length customized)
  • Power input: 12- 24V DC
  • Standby: less than 1W
  • Operating frequency: 40kHz
  • Probe beam angle: single angle 60-80° degrees, can choose double angle Y = 60-80 degrees,  X = 100-120 degrees
  • Size: 166x100x445.6mm
  • Low temperature - 30°C, high temperature of 80°C



Our services:


1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
