Millimeter wave radar sensor

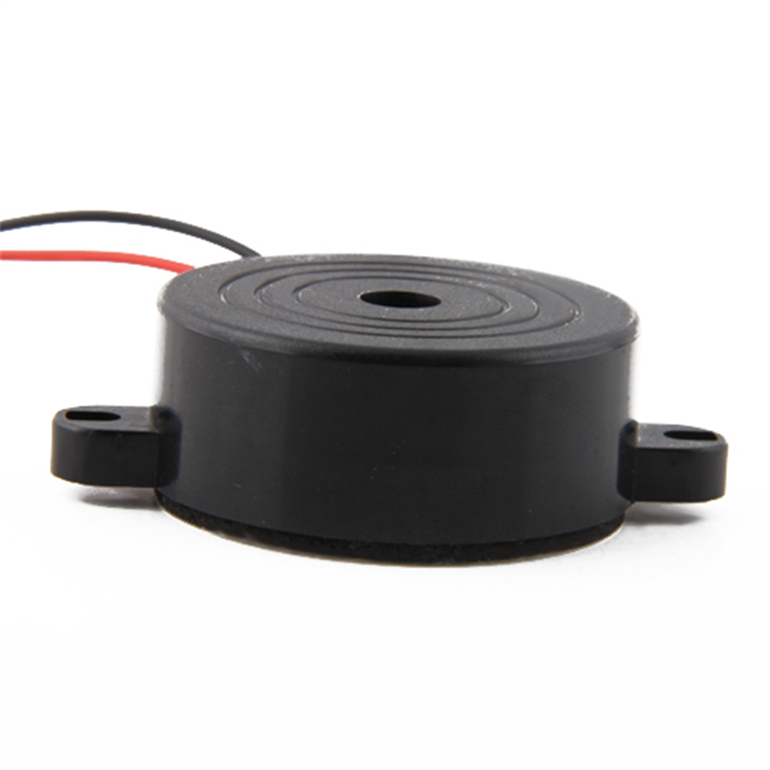

  • Name: 4 6 8 sensors buzzer alarm parking sensor,parking sensor system,car parking sensor for truck/van
  • Product Code: ST-H5004
  • Incoterm: EXW
  • Availability: No stock
Share to:

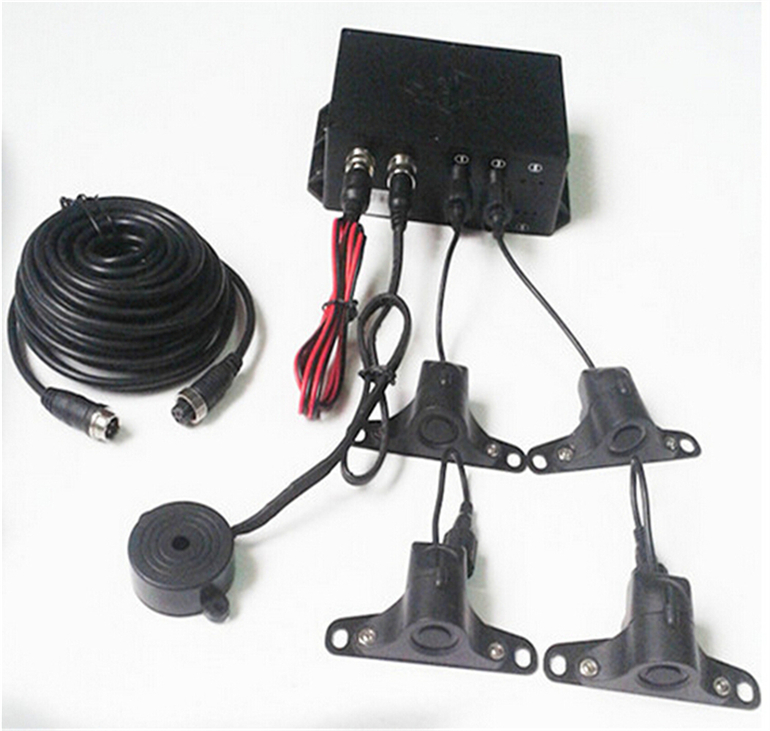

4 6 8 sensors buzzer alarm parking sensor,parking sensor system,car parking sensor for truck/van

Specifications:
  • LED car parking sensor system for truck
  • Ultrasonic frequency: 40kHz
  • 2m power cable

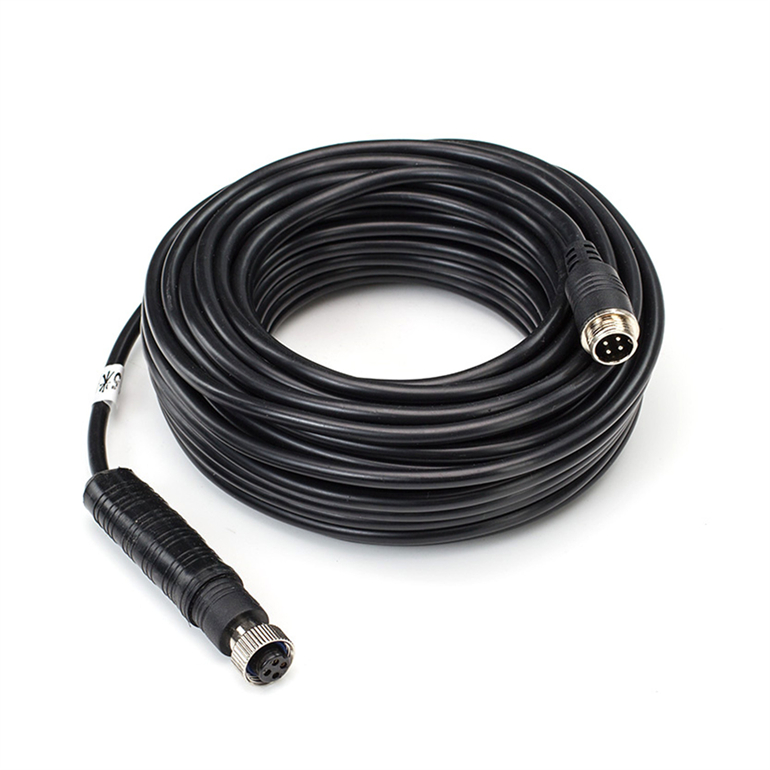

  • 5m, 10m, 15m, 20m extension cable
  • 4 sensor system, and advanced chipset for enhanced coverage and detection
  • With digital colored LED display (number and light)
  • Help to prevent dangerous and costly collisions, enhance the safety features with simple installation.
  • Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle.
  • Detector of the radar perfectly matches the car body.
  • Adaptive environment technology
  • Anti-freeze and rain proof
  • Easy to install
  • Rate operating range: 12-24V DC
  • Rate current: 100-300mA
  • Power: 3.6W
  • Detecting distance: 0.3-3.0m (5m customized)
  • Ultrasonic frequency: 40kHz
  • Control module working temperature: -30 to 80°C
  • Display working temperature: -30 to 70°C
  • Detecting angle: H >60°C, V > 60°C
  • Microphone sensitivity: -60dB
  • LED display size: 78*19*30mm
  • Main control box size: 150*100*46mm

Our services:

1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
