Voltages:DC9V-16V

Working Temperature:-40℃～+85℃

Power Consumption(W):3w

Waterproof:IP67

Frequency:77GHZ

Radar chip:TI

MCU chip:ST

Distance resolution:0.5m

Distance accuracy:0.18m

BSD warning range:

side : -4m-4m behind:0-15 m

Detection Distance:50m

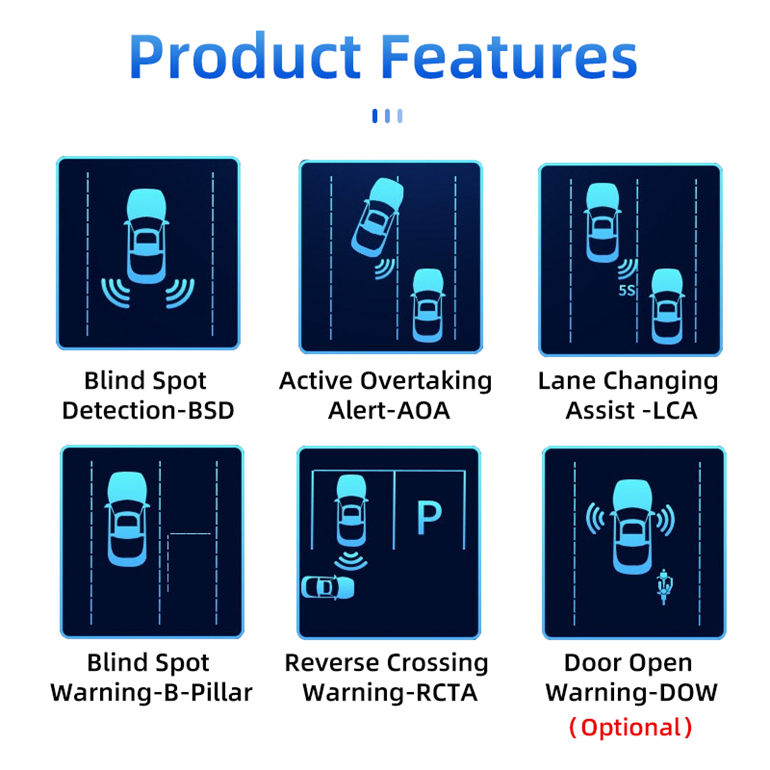

Function:Blind spot detection

Function:Advanced Driving Assistant System

Material:ABS Plastic

Advantage:Easy Installation

Color:Black

Dimension:94.1*67.6*20mm

ADAS:Blind Spot Monitor System

Function 1:Safe driving assist

Warning Type:LED and buzzer

Car Make:universal for all vehicle

Functional warning:

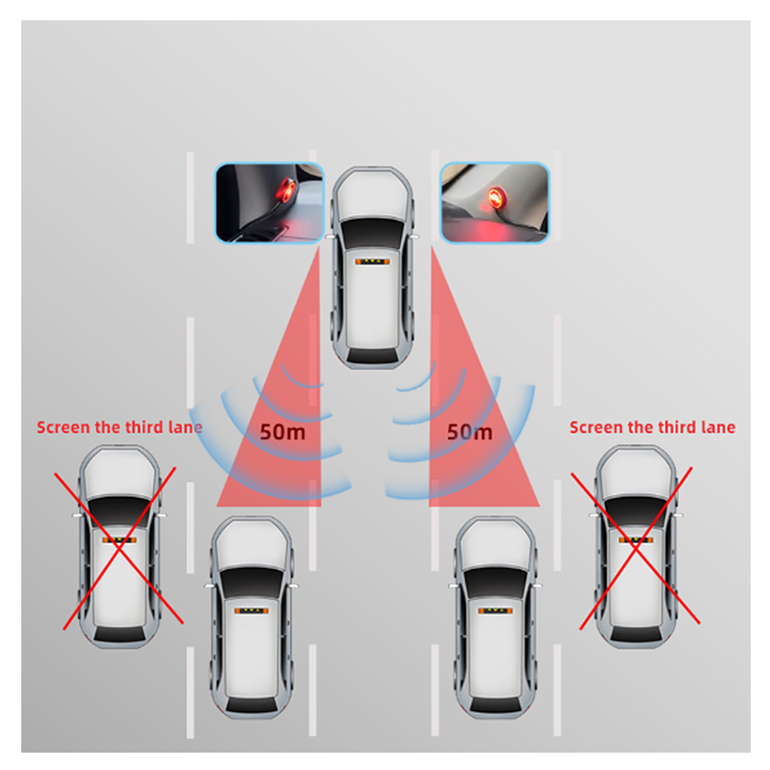

1. Third lane filtering without warning

2. Low speed (1-10km/h) without warning (to avoid congestion warning)

3. Increase approach warning by 50 meters detection (when the following vehicle enters a 50 meter range, the radar starts calculating the approach time between the following vehicle and the vehicle, and lights up to remind if it is less than 4 seconds, that is, the faster the following vehicle speed, the greater the speed difference, and the farther the warning distance (to ensure safety warning distance)

4. Testable signal range (within 10 meters behind) at the same speed and away from the vehicle (same function as the original car factory)

Warning mode:

Level 1 warning mode: When a relative speed target enters the radar signal area (the turn signal of the vehicle is not turned on), the warning light will remain on until the target leaves the monitoring area, and the warning will be cancelled;

Level 2 warning mode: When a relative speed target enters the radar signal area (turn signal on), the warning light will flash and the buzzer will sound until the target leaves the monitoring area, and the warning will be cancelled.
