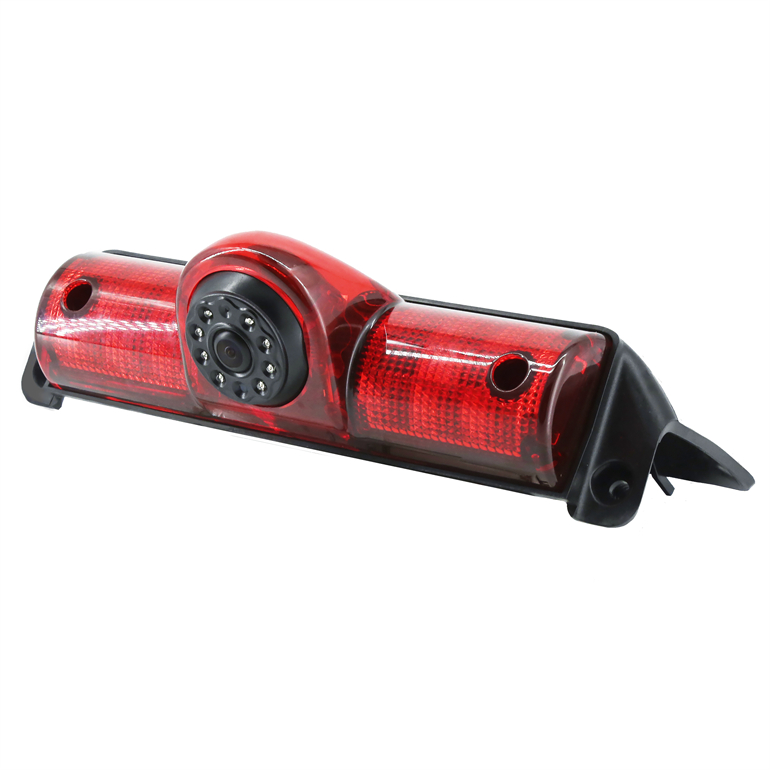

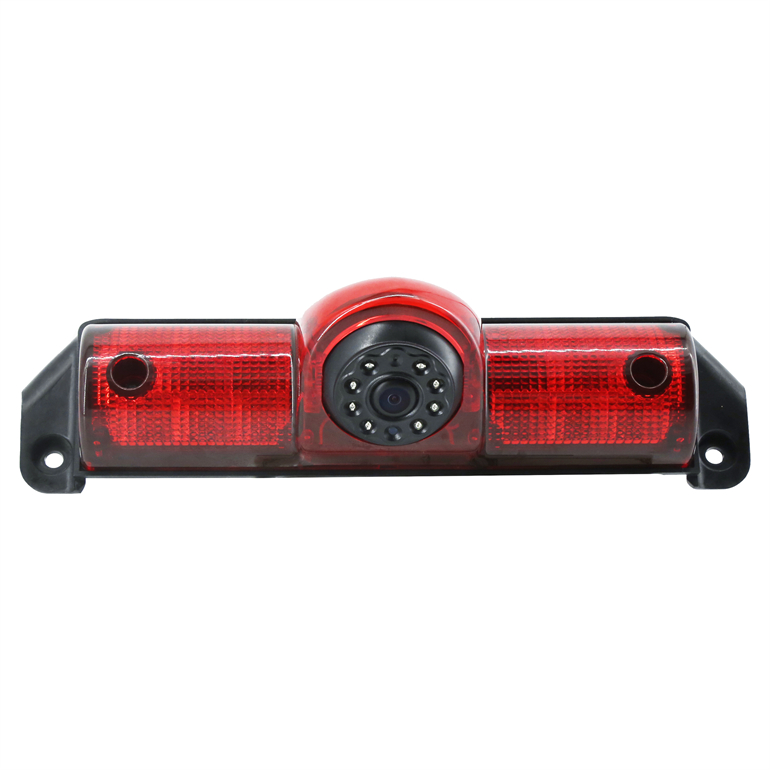

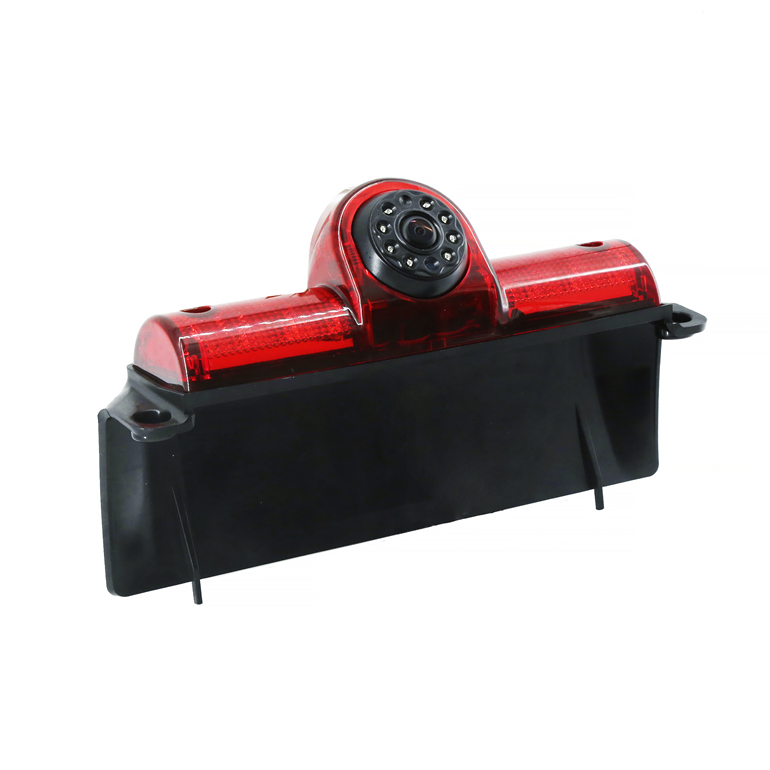

Brake light camera
  • Name: Third break light camera for GM Express & Chevy Savana cargo VAN,8 IR lights super night vision
  • Product Code: ST-806CL
  • Incoterm: EXW
  • Availability: No stock
Share to:

Night vision car camera wide angle waterproof car security third brake light camera for GM Express & Chevy Savana cargo VAN

Features:

Type: brake light camera for GM Express & Chevy Savana cargo VAN
Sensor: CCD, CMOS optional
Resolution:
N: 510×492 pixels
P: 500×582 pixels
TV line: up to 700TVL
Lens: 1.7mm
Min illumination: 0 Lux (LED ON)
IR LED: 8pcs
Night vision distance: 35ft
Waterproof: IP68
View angle: 170°
Power voltage: 12V
Operating temp.: -20℃-+70℃
Microphone: yes

Specifications:

Sensing area: 3.6mm x 2.7mm
Scanning system: 2:1 interlace
Sync system: internal
Horizontal sync frequency: 15.625kHz/15.734kHz
Vertical sync frequency: 50Hz/60Hz
Minimum illumination: 0 lux (infrared lamps on) 0 .1 Lux (day) / F1.2
Video output: 1.0vp-p, 75Ohm
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter: 1/60(NTSC) / 1/50(PAL) - 1/10,000 Seconds
BLC: auto
Infrared LED light: 8pcs
Waterproof rate: IP68 third brake light camera
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Current consumption: max. 190mA

Our services:

1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
