Wireless monitor system
  • Name: 2.4G wireless reverse systems with 5.0 " stand-alone car monitor and wireless bus camera
  • Product Code: ST-500W
  • Incoterm: EXW
  • Availability: No stock
Share to:

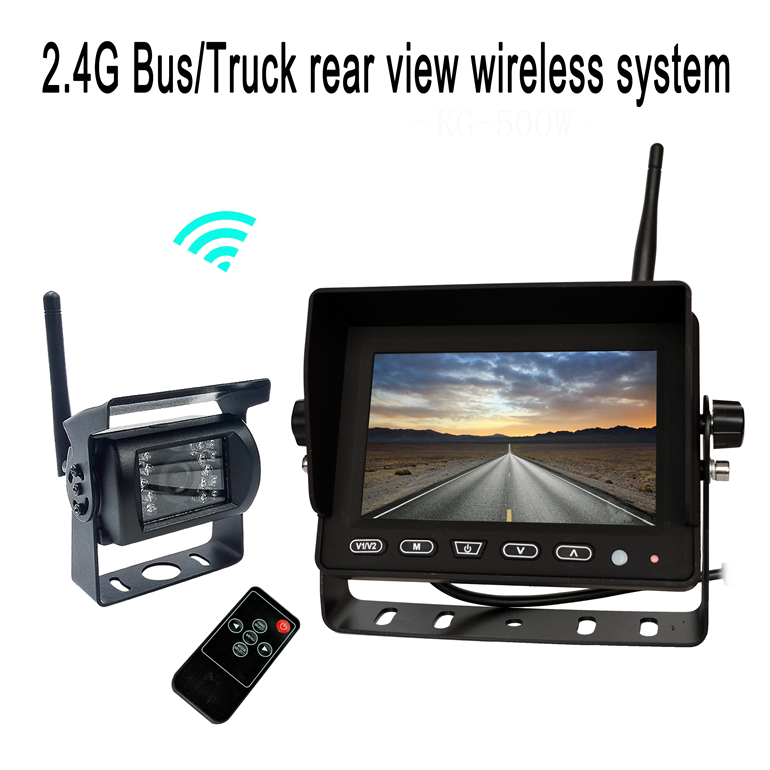

2.4G wireless reverse systems with 5.0 " stand-alone car monitor and wireless bus camera

Specifications:

Transmission frequency: ISM 2370 MHz
Good night vision with LED lights

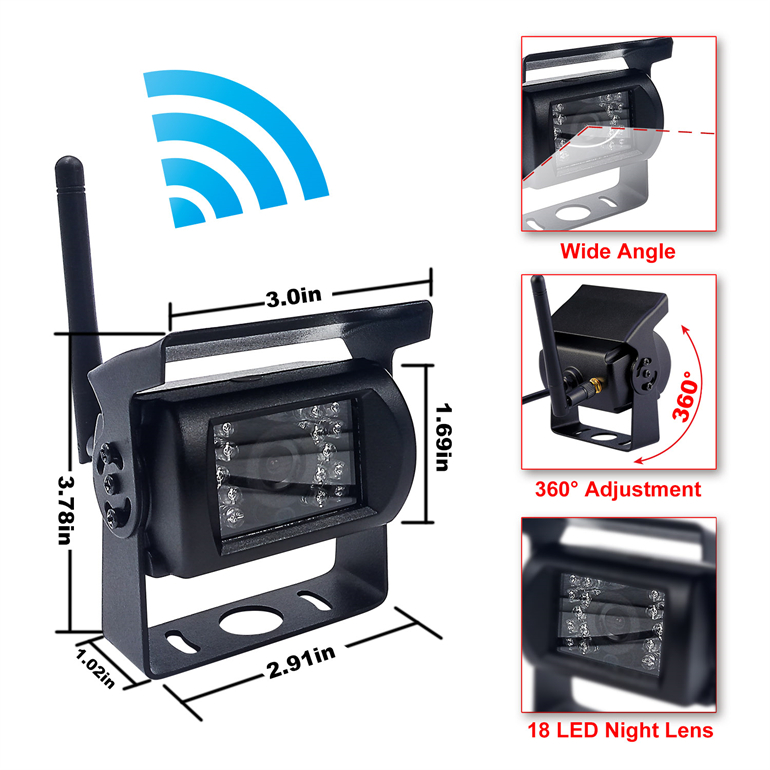

Waterproof bus camera
Wide voltage: 24V DC
Wireless bus camera with 2.4G module
Image sensor: CMOS
Resolution: 420TV line
Effective pixels: 628*582 pixels/PAL, 510*492 pixels/NTSC
Lens angle: 2.5mm (170 degrees)
Minimum illumination: 0.1lux/F1.2 (0lux when infrared LED on)
Video output: RCA connector, 1.0VP-P, 75 ohms
Power: 24V DC (±10%)
Waterproof grade: IP68
Weight: 357g
Wireless module
Transmission frequency: ISM 2400-2483MHz
Modulation mode: FM radio
Working temperature: -10 to +50°C/+14 to +122°F
Storage temperature: -20 to +60°C/-4 to +140°F
Operating humidity: 85% RH
Power: 5V DC, 500mA

Our services:

1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
