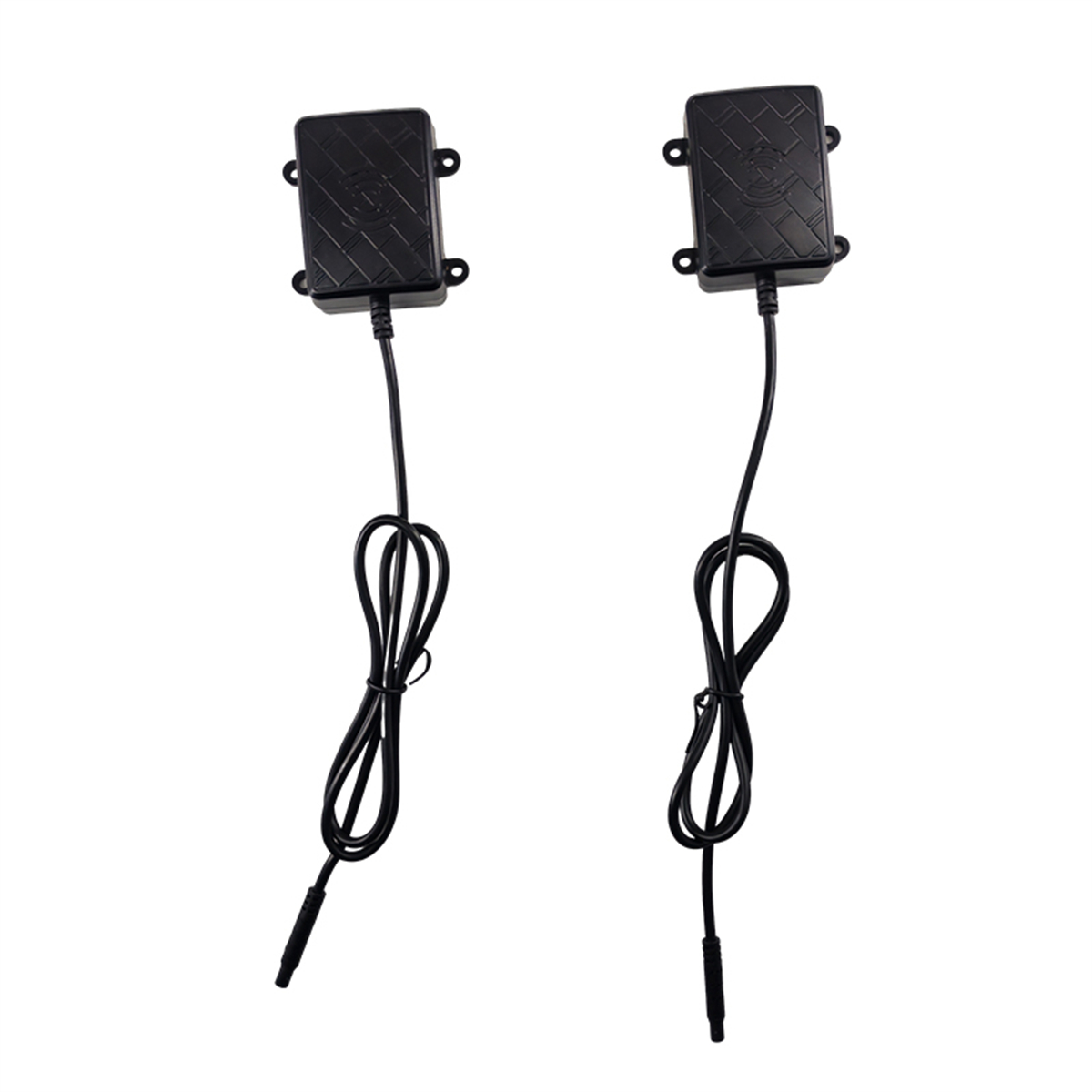

Millimeter wave radar sensor
  • Name: Factory supply bsd blind spot monitoring system 24GHz microwave radar bsm blind area lane change assistance for car safety
  • Product Code: BSD-V3
  • Incoterm: EXW
  • Availability: No stock
Share to:

Voltages:DC9V-16V

Working Temperature:-40℃~+85℃

Power Consumption(W):2w

Waterproof:IP67

Frequency:77GHZ

Distance resolution:0.5m

Distance accuracy:0.18m

BSD warning range:

side : -4m-4m behind:0-15 m

Detection Distance:50m

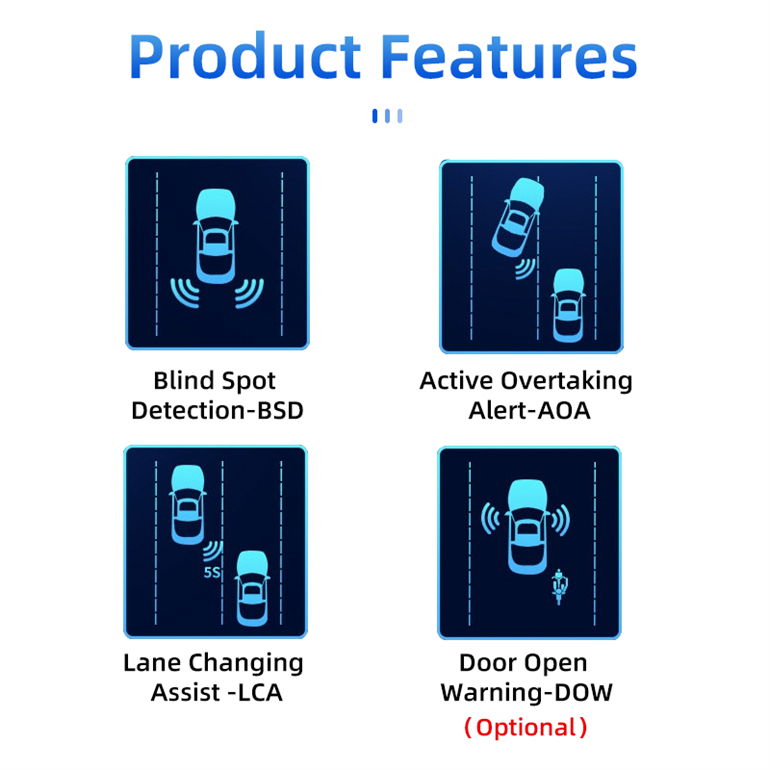

Function:Blind spot detection

Function:Advanced Driving Assistant System

Material:ABS Plastic

Advantage:Easy Installation

Color:Black

ADAS:Blind Spot Monitor System

Function 1:Safe driving assist

Warning Type:LED and buzzer

Car Make:universal for all vehicle


Functional warning:

1. Warning for objects approaching at a faster relative speed entering the signal range

2. 70% probability of filtering third lane objects

3. Filter objects with a relative speed less than 10km/hour when reversing

4. No warning for same speed and distance

Warning mode:

Level 1 warning mode: When a relative speed target enters the radar signal area (the turn signal of the vehicle is not turned on), the warning light will remain on until the target leaves the monitoring area, and the warning will be cancelled;

Level 2 warning mode: When a relative speed target enters the radar signal area (turn signal on), the warning light will flash and the buzzer will sound until the target leaves the monitoring area, and the warning will be cancelled.

Our services:
1.All products have been strictly Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models.
4.We will provide replacement free of charger during warranty.
