Dash type monitor

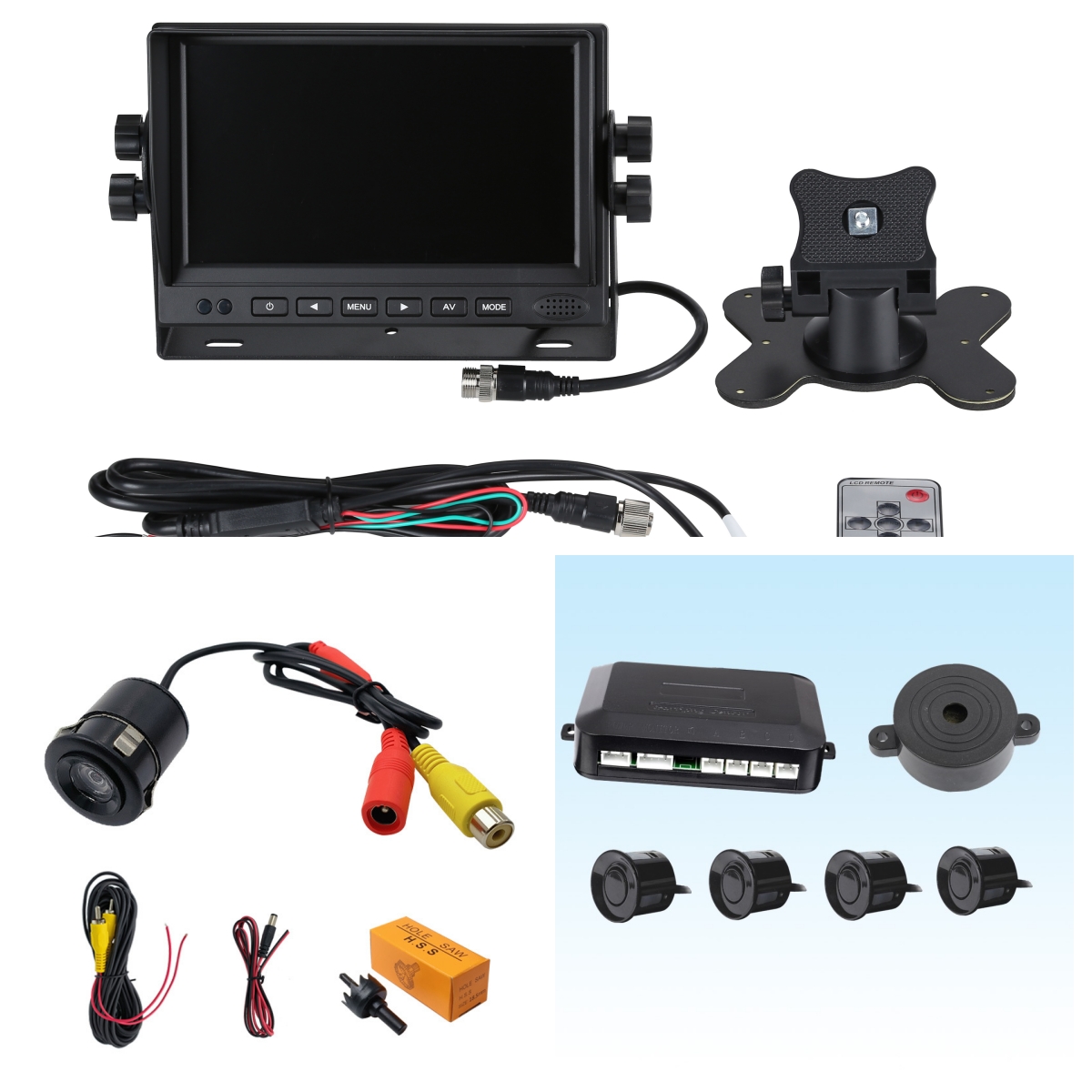

  • Name: 7 inch truck monitory system with front and rear camera supporting parking
  • Product Code: ST-7012
  • Incoterm: EXW
  • Availability: No stock
Share to:

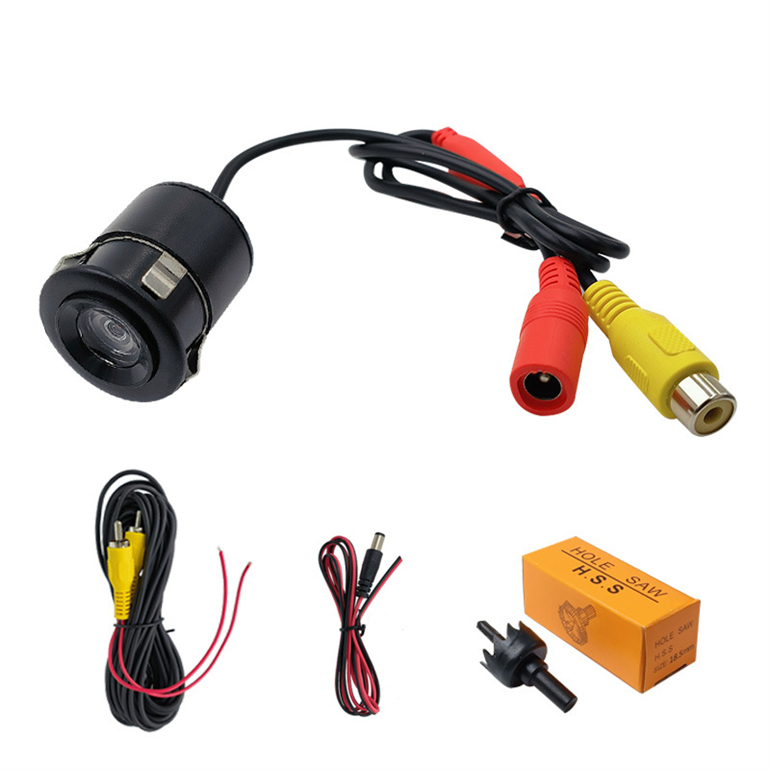

Rearview car cameras

Type of sensor: Korea CMOS sensor camera
Resolution: 480 TV lines
Minimum effective pixel:
NTSC: (H) 510 * (V) 492
Pal: (H) 628 * (V) 582
Video system: PAL and NTSC
Gain control: automatic
IR LED: 4 pieces
IR view:<20 meters
Waterproof: IP67
Anti fog glass: yes
Operating temperature: -30 to 85°C
Storage temperature: -40 to 100°C
Horizontal viewing angle: 140°
Diagonal viewing angle: 170°
Video out: 1.0Vp-p.75Ω

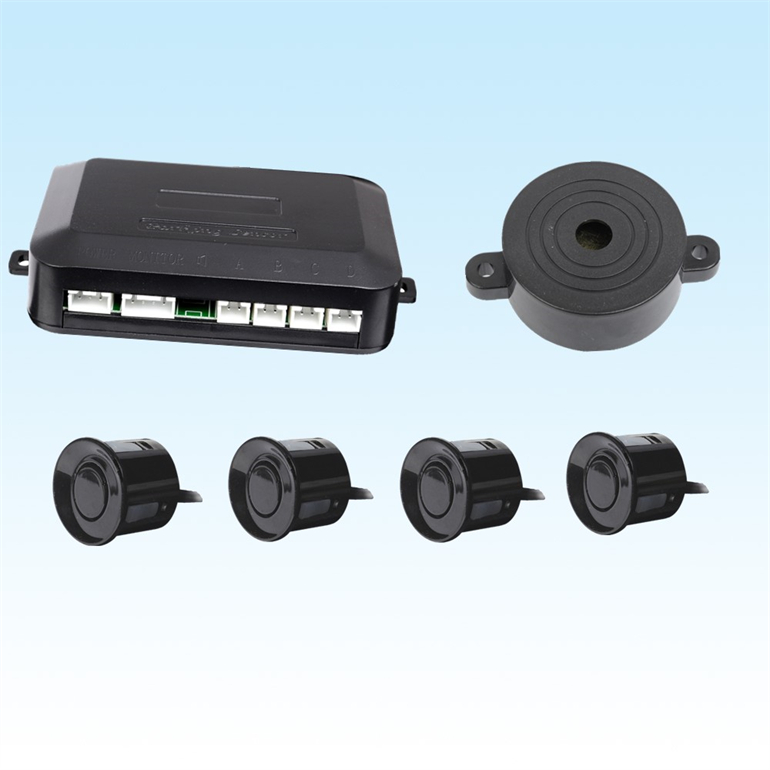

Buzzer alarm parking sensor

Rated voltage: 12V
Operating voltages: 10-28V DC
Rated current: 10-150mA
Detection distance: 0.3-2.5m for rear 0.3-1.2m for front
Ultrasonic frequency: 40KHz
Working temperatures: -30 to 80°C
Warning: 80dB
Full-range technical support

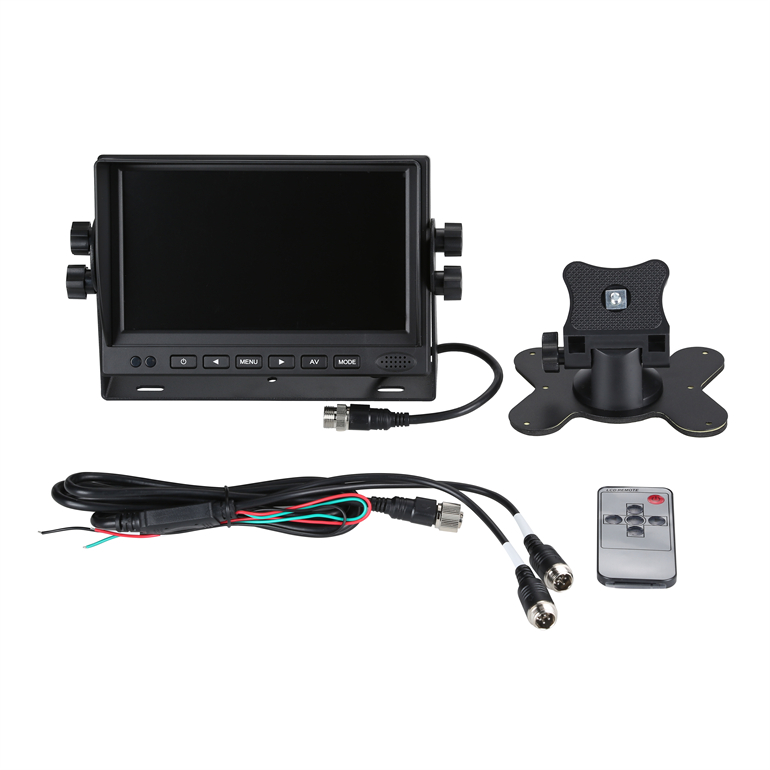

7 inch CVBS truck monitor

Screen size: 7-inch TFT-LCD (16:9/4:3)
Formats: PAL/NTSC
Power supply: 9-45V DC
Resolutions: 800xRGBx480(H),1024x600p are optional
Max power consumption: 5W
Video signal disappear, display blue screen
Viewing angle: horizontal 130°, vertical 110°
Touch key and full function OSD remote control
Auto switch when back the vehicle
