Mirror type monitor
  • Name: Rearview mirror monitor 12.3 inch high resolution ahd electronic 2 channel blind spot for truck/bus
  • Product Code: ST-1238AHD
  • Incoterm: EXW
  • Availability: No stock
Share to:

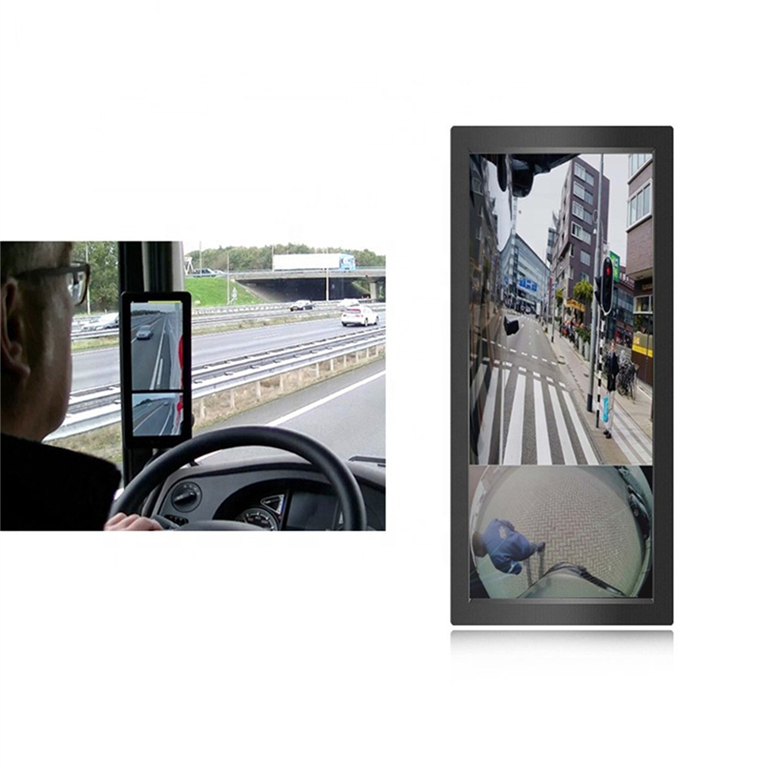

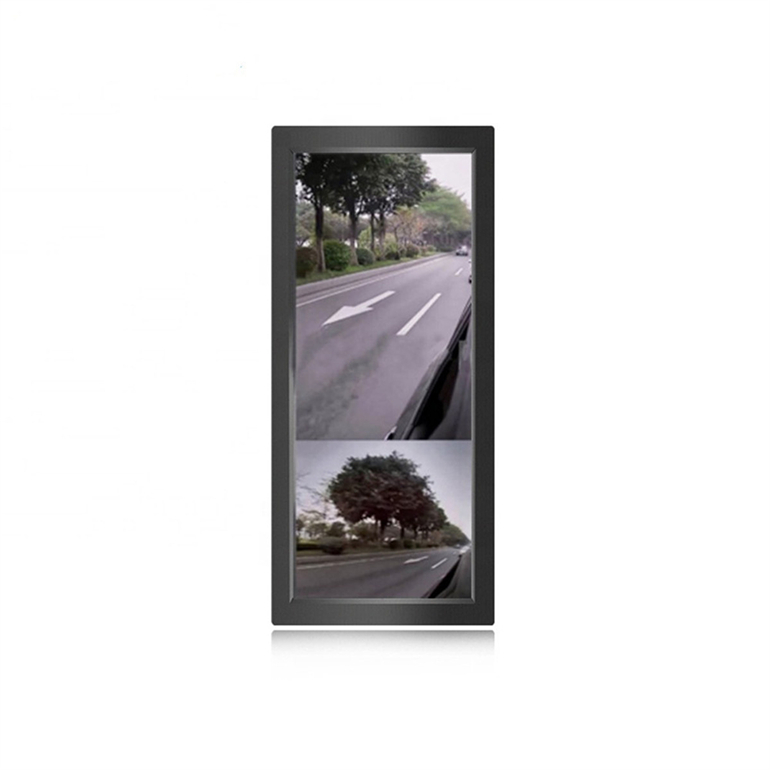

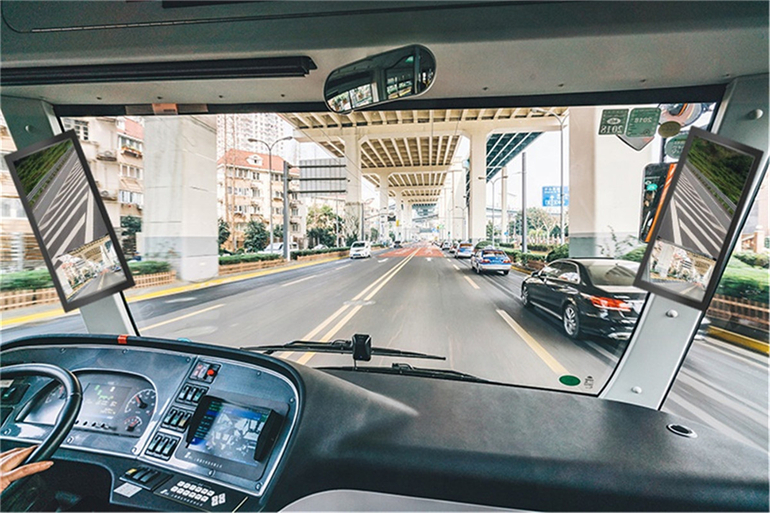

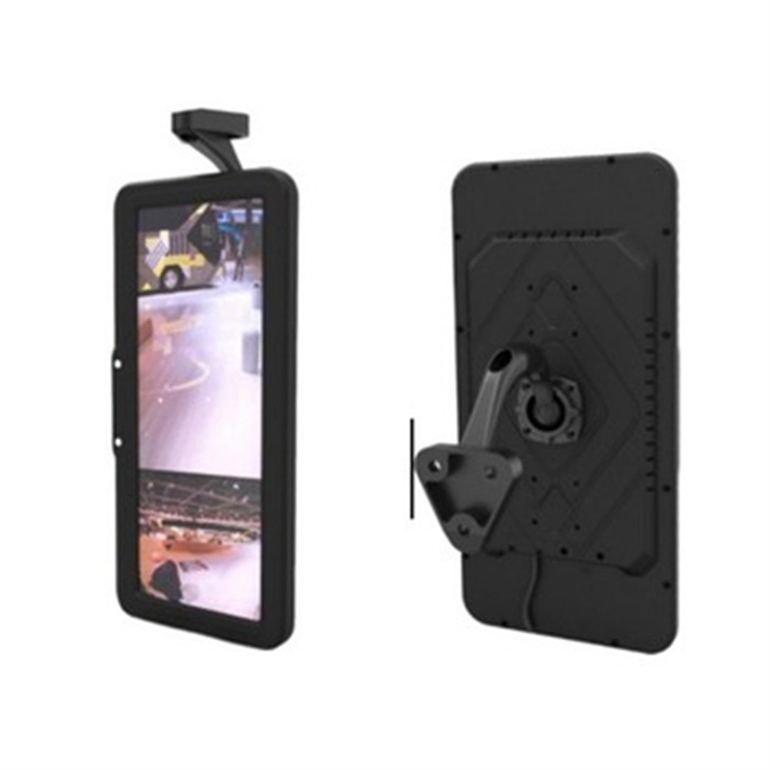

12.3 inch High resolution AHD electronic 2 channel rear view Mirror blind spot monitor for truck/bus,mirror car monitor

Monitor specification:

Screen size: 12.3inch (8:3)IPS FULL HD
Resolution: 1920(H)xRGBx720(V)
Screen back light: LED
Brightness: 850cd/㎡
Contrast: 800:1
Visible range: 292.032(H)*109.512(V)mm
Visible angle: 85/85/85/85
System: PAL/NTSC/Mix
Voltage: DC12V~36V (With undervoltage, overvoltage, overload, short circuit, reverse protection)
Working Temperature:-20℃~70℃,Maximum humidity 95%
Storage Temperature:-30℃~80℃,Maximum humidity 95%
Maximum support for TF card 256G video recording (standard 32GB/ 24h)
Video: Support CVBS/AHD720P/AHD960P/AHD1080P/Mix
Video input: Max four way video inputs, one way output; Four way trigger wires
Display mode: Built-in 12 multi-screen combination display modes, which can be set as the default boot screen to meet the special needs of different users (four-way mode)
Image control: Each channel mirror/normal;Brightness;Contrast adjust
Video files can be played back online or backed up to a computer
Loop video, auto overwrite, important video files can be set lock protection, lock files will not be overwritten delete

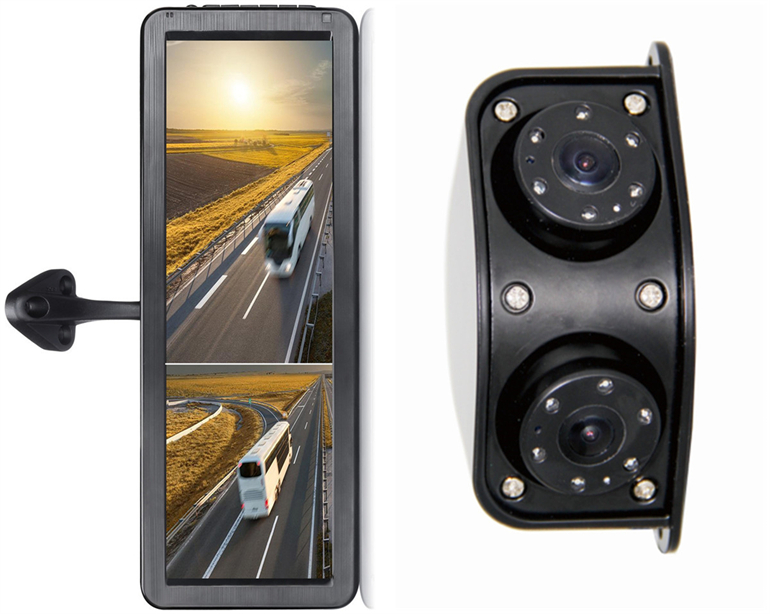

AHD camera specifications

Aluminium alloy housing, 304 stainless steel screw
With night vision
Image Device: 1/3  SNY  IMX225
TV System: PAL
Effective Pixels:
Minimum Illumination:  0.0001 LUX / F1.2
Resolution:  1200TVL
Scanning Frequency:  PAL: 50Hz   NTSC: 60Hz
Image: Normal image, without guide line
Plug: 4 Pin aviation
Voltage: DC12V
Function: Mirror/Normal image switch on cable
View angle:150°/90°
Operating Temperature: -20℃ ~ 70℃
Storage Temperature: -30℃ ~ 80℃
Dimensions: 110(L)x78(W)x45(T)
Certificates: IP69K/CE/EMARK/
Camera vibration Test/Salt Spray Test Chamber Test

Our services:

1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
