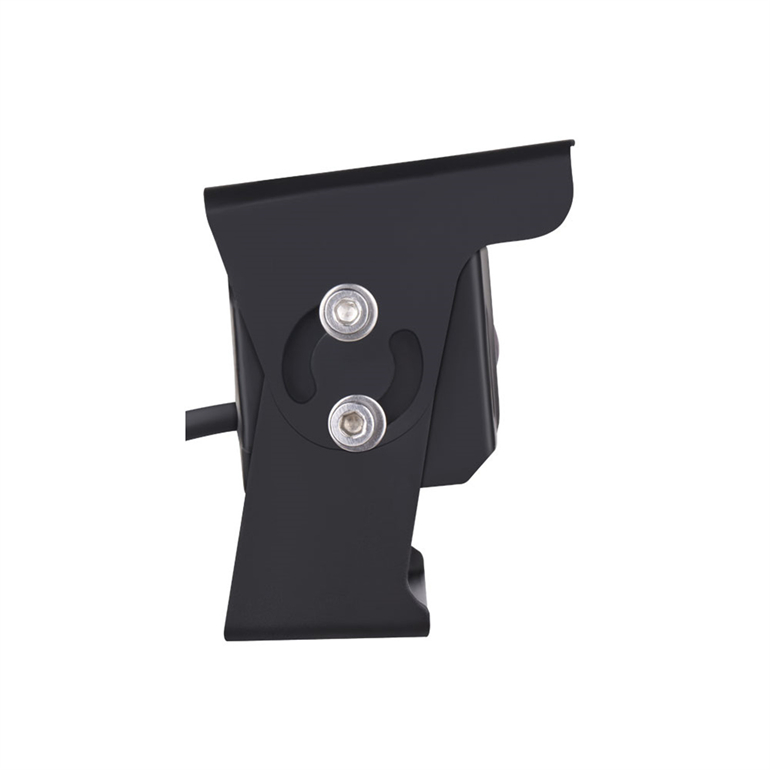

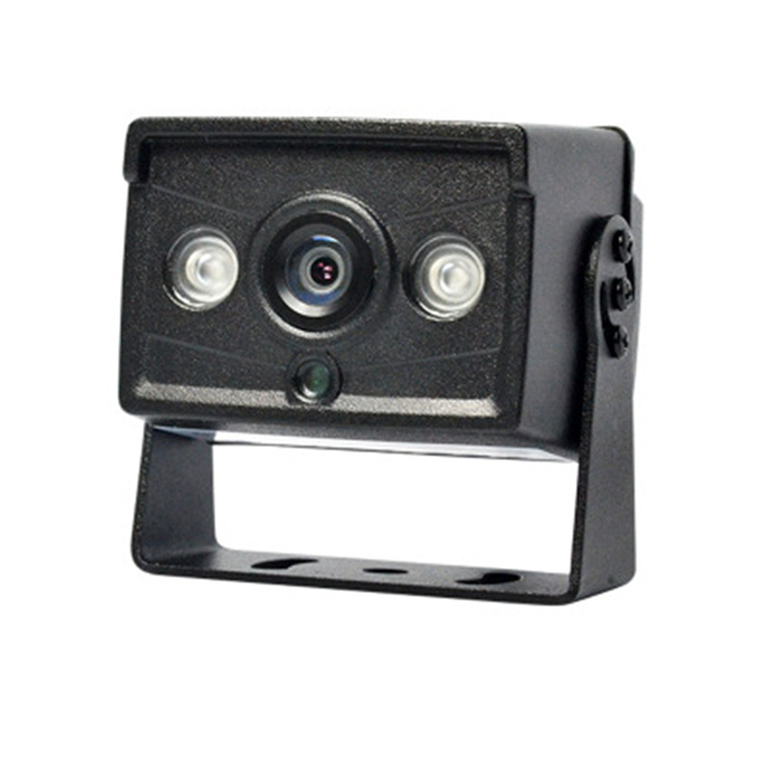

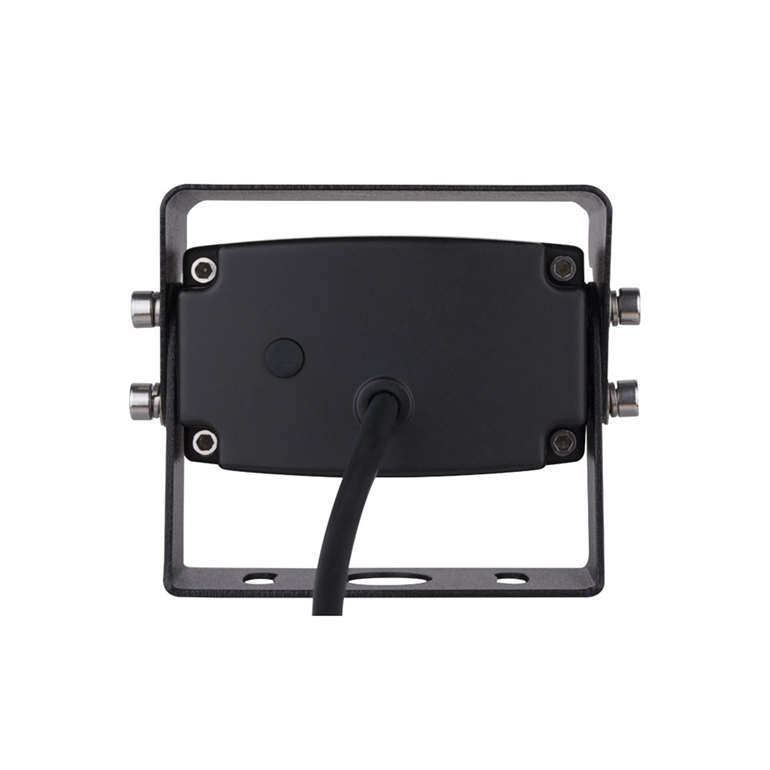

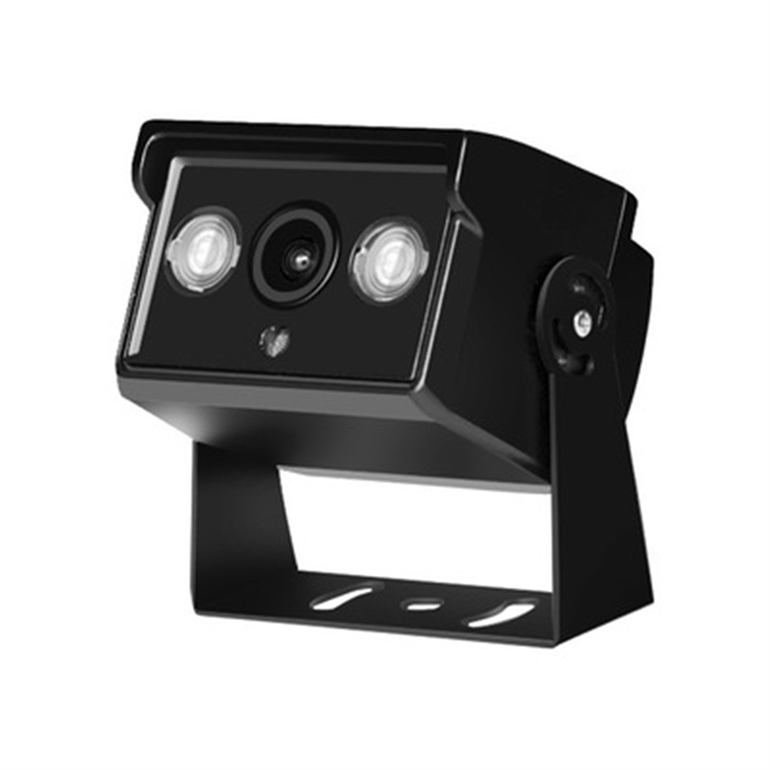

12/24V heavy duty camera bus & truck,170 degree rearview camera,Car side camera IP68

Specifications:

1)Ip rating:Ip66-68
2)Images Sensors:1/3" APTINA CMOS//NVP
3)TV System:PAL/NTSC
4)Effective Pixels:512X582/512X492
5)Sensing Area(mm):4.9X3.7
6)Resolution(TV Lines) 800TLV
7)Min.illumination(Lua/F1.2) 0
8)Horizontal Sync.Frequency(KHZ) 1/50 or 1/60~1/10,000
9)Vertical Sync.Frequency(HZ) 15.625/15.734
10)Video Output: 1Vp-p,75 Ohm
11)BLC : Auto
12)S/N ratio : Better than 48dB
13)Lens: F=2.8mm/F=2.0
14)Lens Angle(Deg.) : 170 degree
15)Current Consumption(mA) : 290
16)Power Supply(DCV): 12V
17)Operating Temperature(Deg.C): -20~+70(RH95%Max.)
18)Storage Temperature(Deg.C) : -40~+80(RH95%Max.)

Our services:

1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
