Car monitor
  • Name: 10.1" car rearview monitor with Quad Images& Built-in DVR for truck/van/bus
  • Product Code: ST-1016QDVR
  • Incoterm: EXW
  • Availability: Small quantity in stock
Share to:

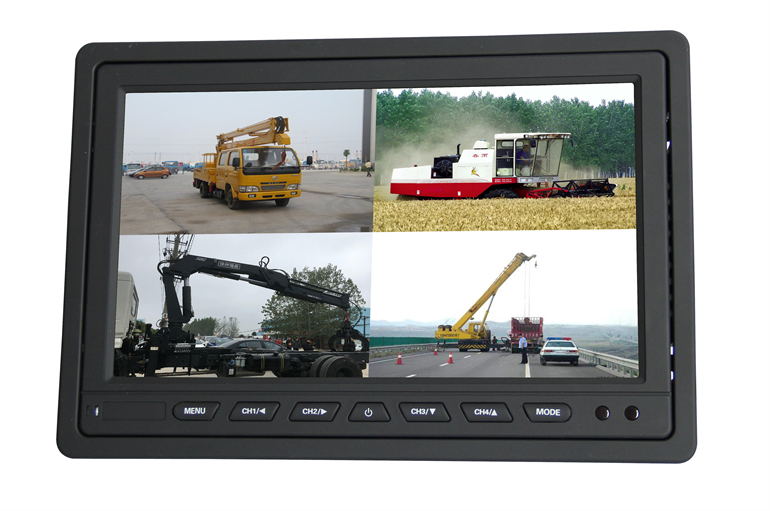

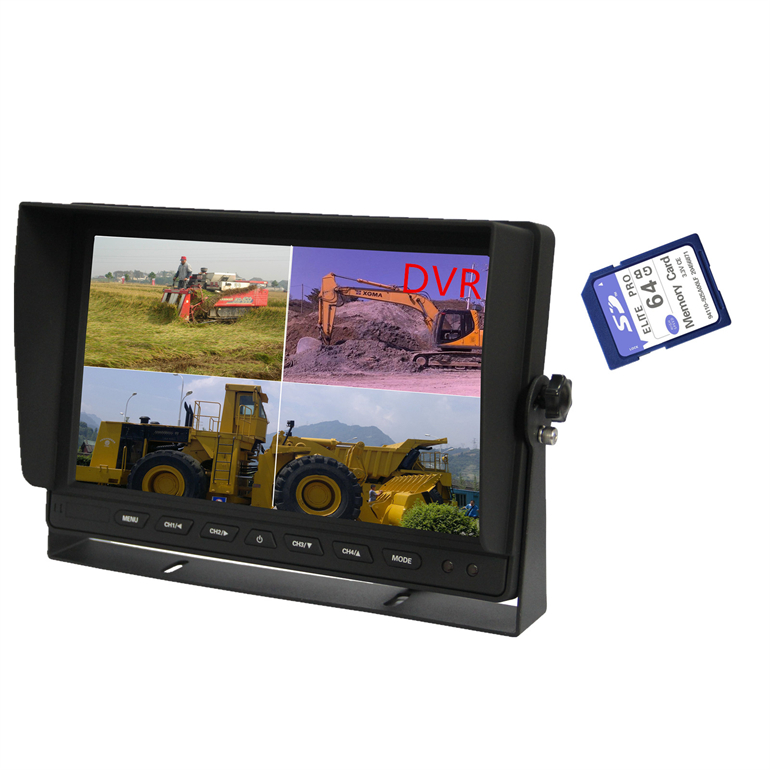

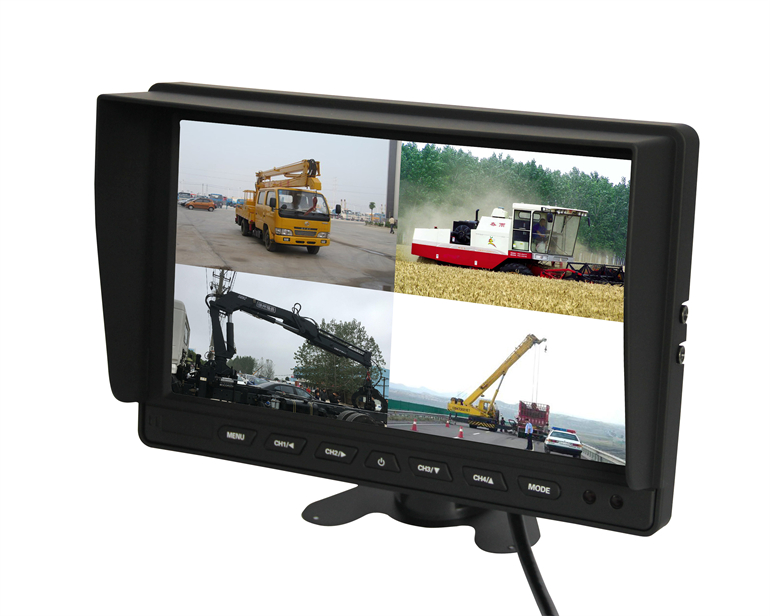

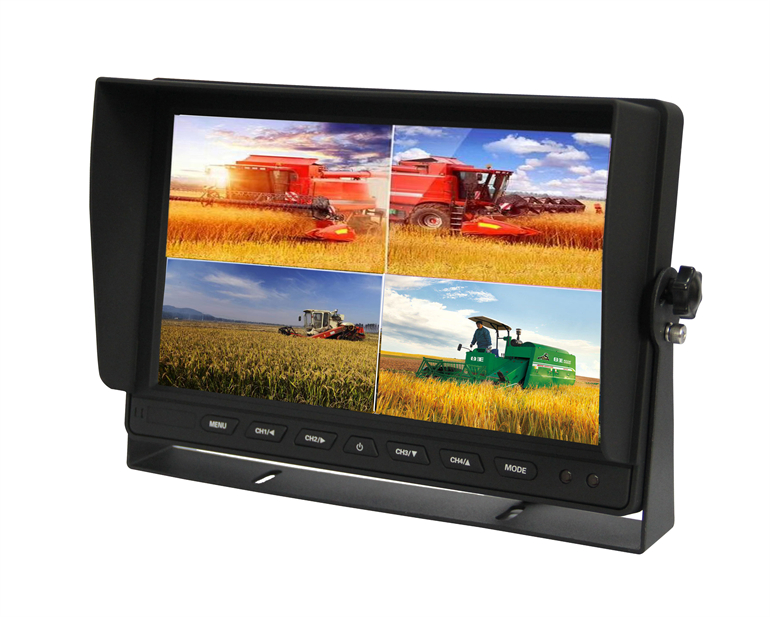

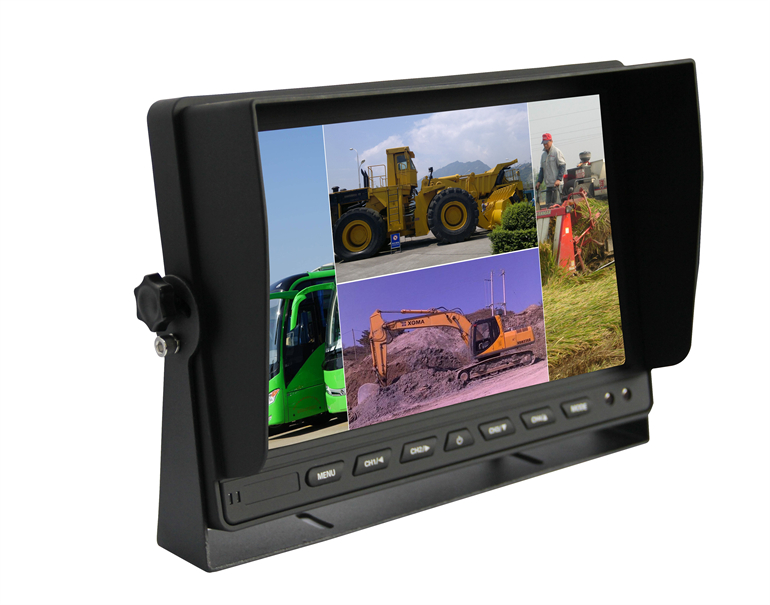

10.1" car rearview monitor with Quad Images& Built-in DVR for truck/van/bus

Specifications:

Screen Ratio:10.1″high digital new panel ,16:9image
Back Light:LED,300cd/㎡
Resolution:1024xRGBx600/
Compatible system:NTSC & PAL (automatically)
OSD control:Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angel:Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
DVR image quality: DVR image quality:DVR recording 4 channels video signal,
VGA resolution:720*480, PAL Recording speed: 50FPS,
NTSC Recording speed: 60FPS Storage format: AVI
Video storage:SD high-speed card, maximum support64G
Memory interface:1. SD interface
Power requirement:9-45V DC
Power consumption:7W
Storage temperature:-30〜80℃
Working temperature:-20℃ to 70℃
Size:256*170*34(76)mm

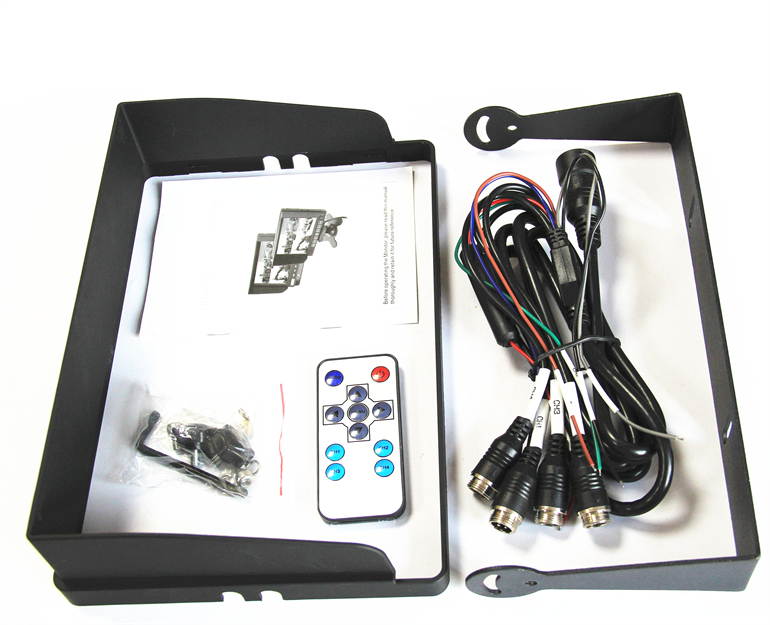

Exterior color:Black rubber oiling,radium carving, through blue light Detachable sunshade&Metal,U type bracket

 Our services:

1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
