AHD camera
  • Name: Factory supply AHD 12/24v car side camera heavy duty camera for truck,waterproof IP68 bus camera
  • Product Code: ST-1808
  • Incoterm: EXW
  • Availability: Small quantity in stock
Share to:

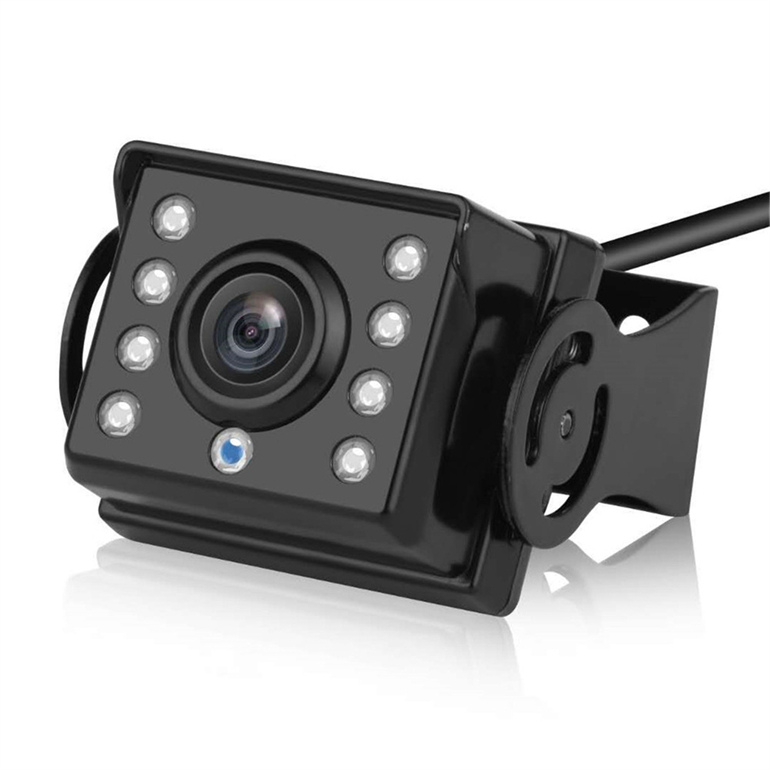

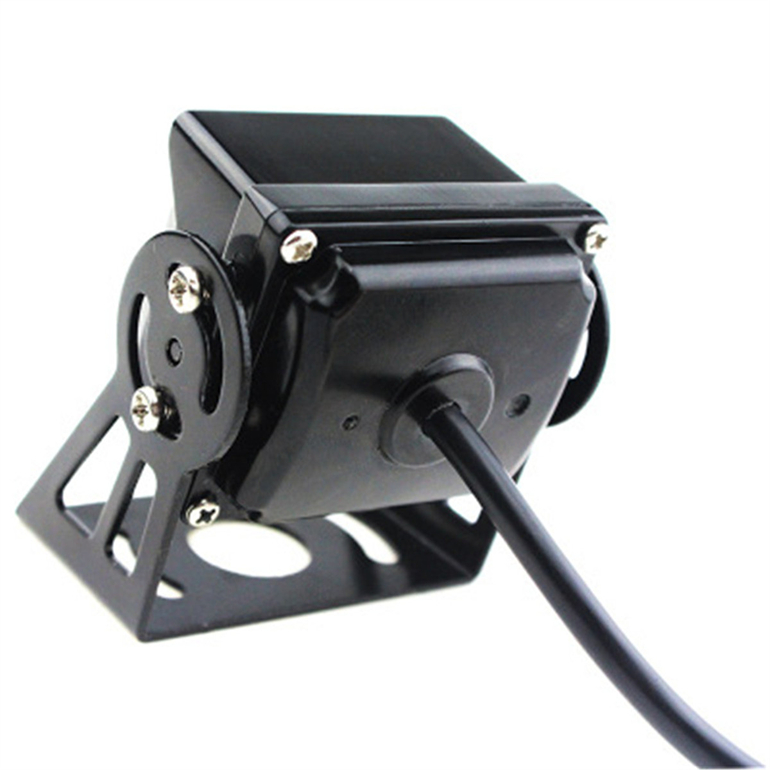

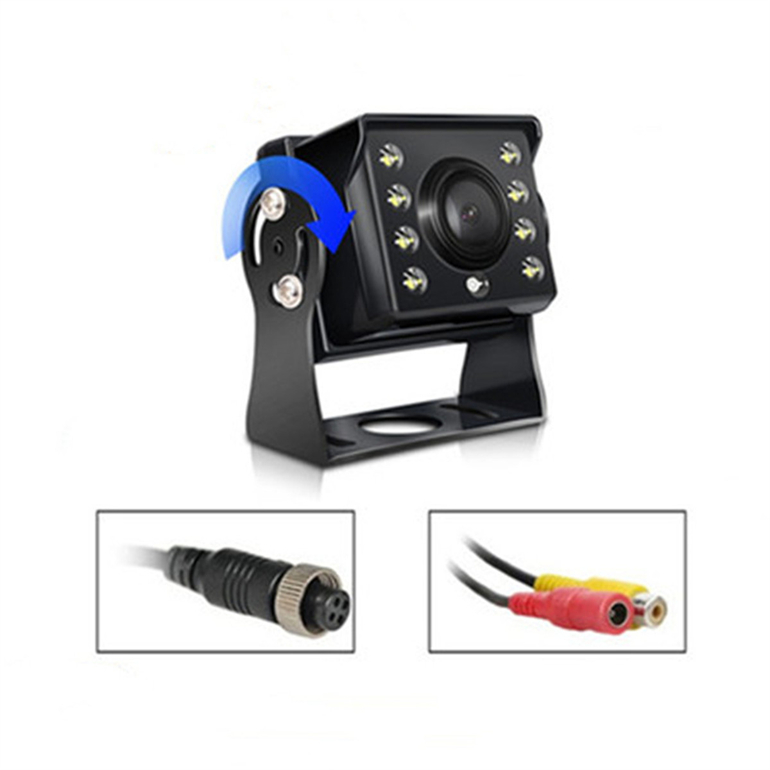

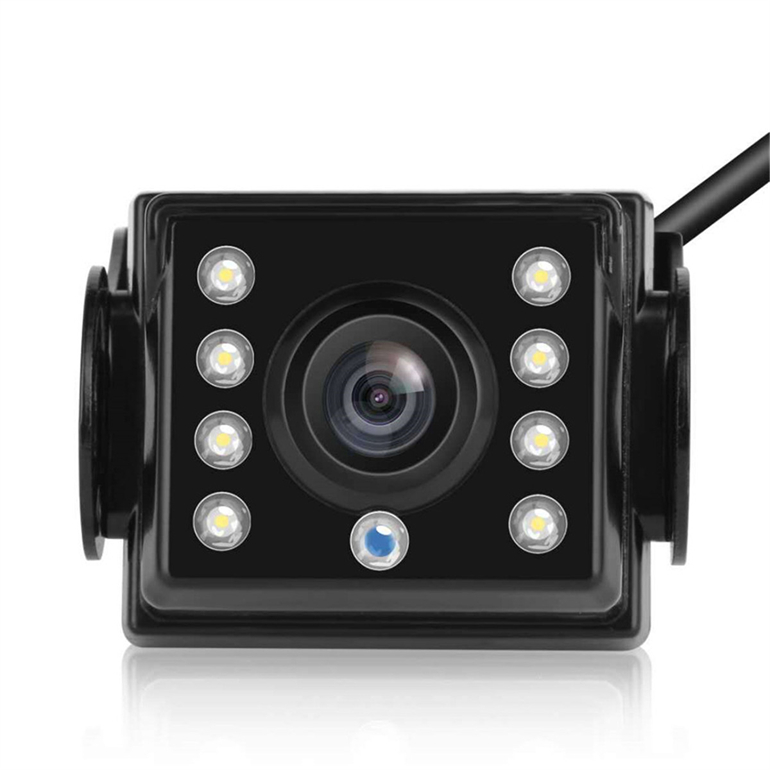

Factory supply AHD 12/24v car side camera heavy duty camera for truck,waterproof IP68 bus camera

Specifications:


Type of sensor: Korea CMOS sensor cameraChip:AHD 2053
Resolution:(TV Line)480420
Effective pixels:720*576/720*480580*540/580*492
Minimum illumination:0.5 lux1 lux
IP rating:Ip68
lens Angle(Deg.):150°
TV System:PAL/NTSC
Power Supply(DCV):DC12V±1V
Power:<1W
Electronic shutter:1/60(NTSC)1/50(PAL)1/10,000second
S/N Ratio:≥48dB
Video output:1.0vp-p.75ohm
White Balance:Auto
AGC:Auto
Operating Temperature(Deg. C):-20~+75(RH95% Max.)
Storage Temperature(Deg. C):-30~+85(RH95% Max.)





Our services:


1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
