Bus/truck camera
  • Name: Night Vision Car Rearview Front Reverse Camera,Infrared led car side camera for Truck/Bus
  • Product Code: ST-808
  • Incoterm: EXW
  • Availability: Small quantity in stock
Share to:

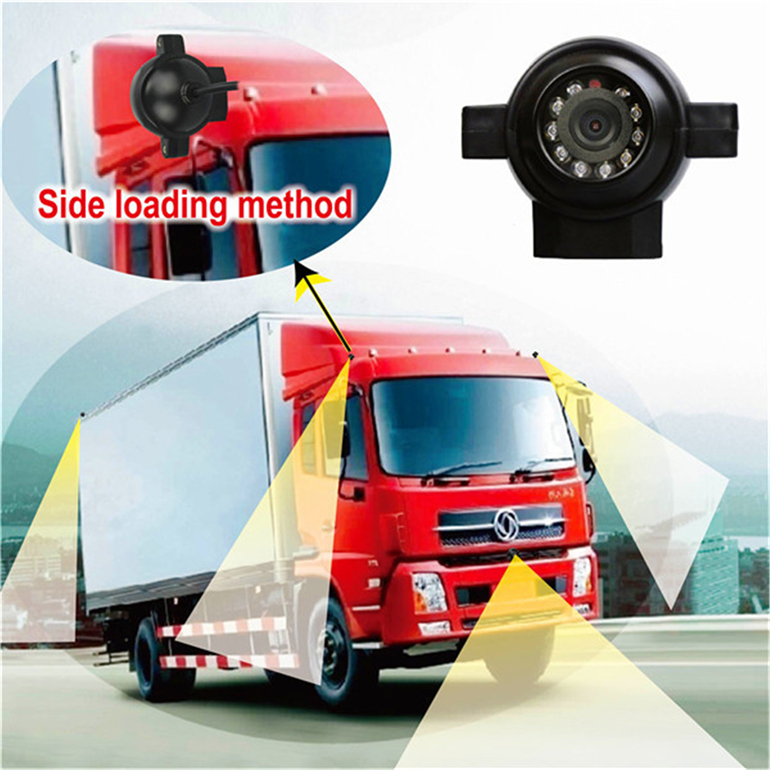

Rearview Front Reverse Camera, car side camera for Truck/Bus

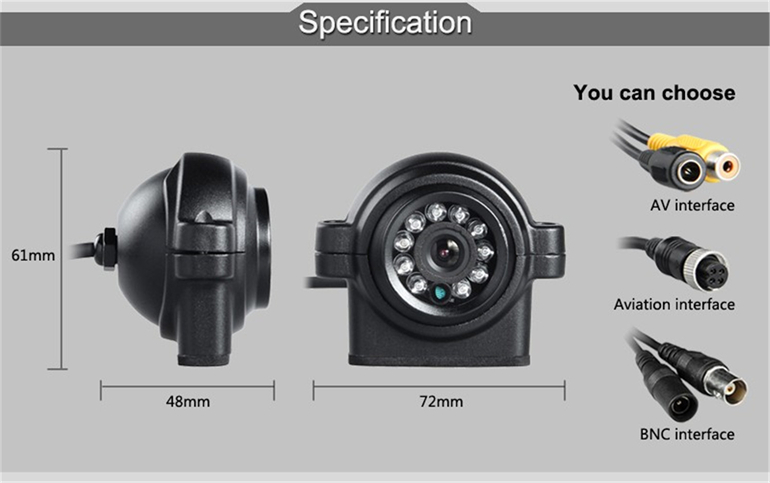

Specifications:

IP rating: IP67
Images sensors: 1/4" color CCD
TV system: PAL/NTSC
Effective pixels: 512*582 pixels/512*492 pixels
Sensing area(mm): 4.9X3.7
Resolution (TV Lines): 420
Min. illumination (Lua/): 0LUX
Horizontal sync frequency (kHz): 1/50 or 1/60-1/10,000
Vertical sync frequency (Hz): 15.625/15.734
Video output: 1Vp-p, 75 Ohm
BLC: auto
S/N ratio: better than 48dB
Lens: F=2.8mm/F=2.0
Lens angle (deg.): 120 or 90 (optional)
Current  consumption (mA): 120mA
Power supply (DCV): 12V
Operating temperature: (Deg.C) -20-+70 (RH95% max.)
Storage temperature: (Deg.C)-40-+80 (RH95% max.)


Features :


1. Night vision infrared car camera
2. IP rating IP67
3. IR light 10pcs
4. Special appearance
5. Detachable
6. Use for truck, bus, other car






Our services:


1. All products have been strictly checked in house before packing
2. All products have been well packed before shipping
3. One year warranty is provided for all models
4. We will provide replacement free of charge during warranty
